Dental Orthopedics

Finishing tools

FG Sheets
FG Sheets

To form and shine Erkoflex.

Delivery Forms
Order No.
Description
Contents
Unit
FG Sheets
50
pieces
Application
The hot surface can be smoothed and shined by shortly pressing a FG sheet on.
Downloads
Fine crosscut carbide bur, conical
Fine crosscut carbide bur, conical

Crosscut conical tungsten carbide bur allows the quick grinding of small and large radius on all thermoforming materials.

Usage
At high tours (20 - 40 000), safety goggles.
Delivery Forms
Order No.
Description
Contents
Unit
Fine crosscut carbide bur, conical
1
piece
Downloads

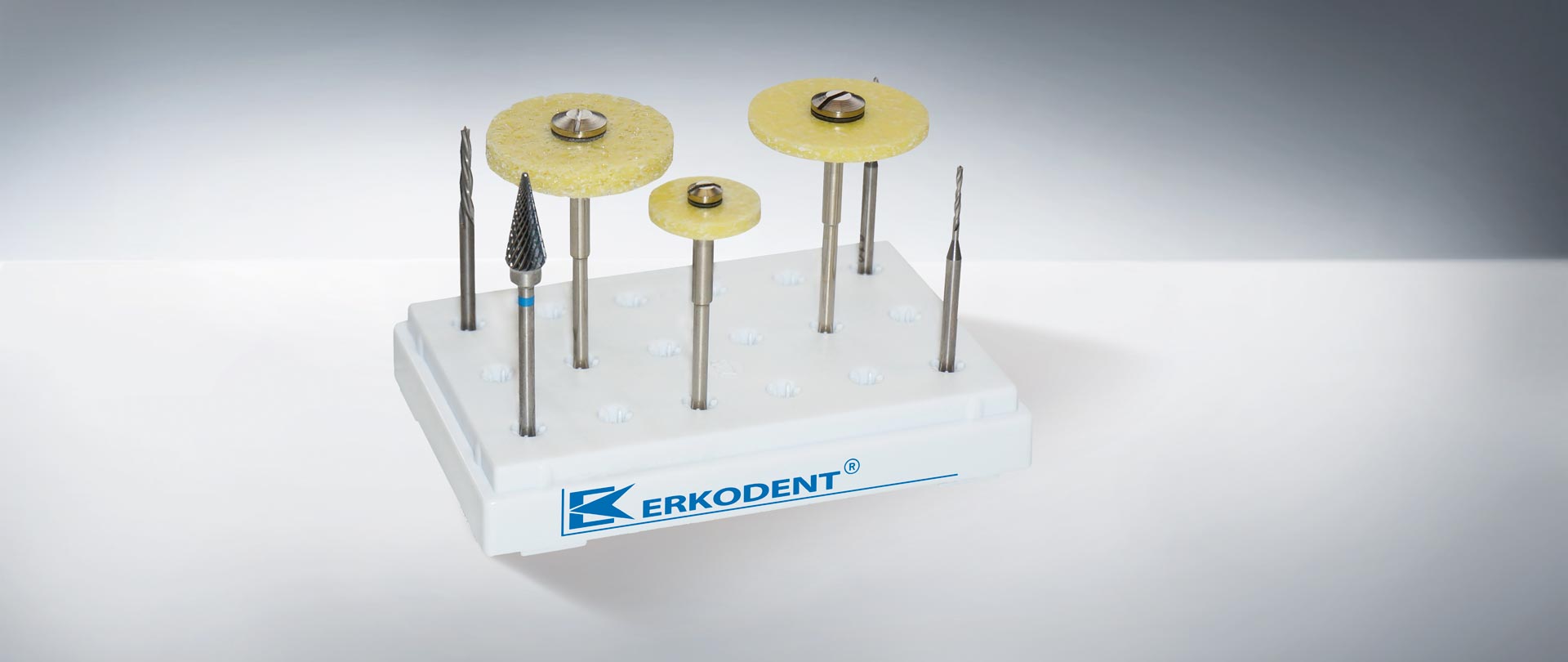

Finishing Set Quick 3
Finishing Set Quick 3

Contains all rotating instruments that are useful for the finishing of all thermoforming materials: Fissure bur for rough cutting, HSS-twist drill for more precise contours, carbide bur for smoothing, Liskosil-l for prepolishing, removing larger amounts of material, without leaving an edged surface. Liskosil-m like Liskosil-l and for narrow areas, e.g. in the papilla area of a splint. Liskosil-s, for processing of occlusal interferences and
the inner surface of a splint.

Delivery Forms
Order No.
Description
Contents
Unit
Finishing Set Quick 3
1
package
Delivery Contents
1 fissure bur, left spiral, rightward cutting, 2 HSS-twist drills, 1 crosscut tungsten carbide bur, conical, 1 Liskosil-l, 1 Liskosil-m, 1 Liskosil-s, 3 mandrels
Downloads
Fissure bur rightward cutting, left spiral
Fissure bur rightward cutting, left spiral

The fissure bur is rightward cutting and has a left spiral. Material rests are transported away from the handpiece and therefore lumps during cutting are avoided. Used for rough cutting out of hard materials.

Usage
High speed (20 - 40 000 rpm), wear safety goggles.
Delivery Forms
Order No.
Description
Contents
Unit
Fissure bur rightward cutting, left spiral
2
pieces
Downloads
Fissure bur square
Fissure bur square

Fissure bur square made of steel. For rough cutting out of hard thermoforming foils and plates.

Usage
High speed (20 - 40 000 rpm), wear safety goggles.
Delivery Forms
Order No.
Description
Contents
Unit
Fissure bur square
3
pieces
Downloads
Hot air burner with acc. (without gas)
Hot air burner with acc. (without gas)

Hot-air-burner without flame, no soot, no blackening.

Usage
Will be refilled with butane gas.
Delivery Forms
Order No.
Description
Contents
Unit
Hot air burner with acc. (without gas)
1
piece
Application
Ideal for the local softening and polishing of Erkoflex and Erkoflex-95 materials.
Downloads
Lisko polishing discs
Lisko polishing discs

Lisko polishing discs with open structure for cooling, unique for working soft materials.
3 grain sizes: brown - coarse
grey - medium
white - fine

Material Specification
The discs adapt flexibly to the contours of the surface which has to be worked. They distinguish by only small heat development, do not smear and ensure constant results due to particles which are polished off steadily.
Usage
Max. number of revs. 4000/min. In case of fine grain size grind under low pressure only. Wear protective glasses.
Delivery Forms
Order No.
Description
Contents
Unit
Lisko polishing discs, fine, white
10
pieces
Lisko polishing discs, medium, grey
10
pieces
Lisko polishing discs, coarse, brown
10
pieces
Lisko polishing discs, assorted
10
pieces
Lisko polishing discs, fine, white
100
pieces
Lisko polishing discs, medium, grey
100
pieces
Lisko polishing discs, coarse, brown
100
pieces
Delivery Contents
each 10 pieces, 4 supporting discs, 1 mandrel
Application
Excellently suited for grinding and smoothing flexible acrylics, silicones or other soft materials. They are also suited for prepolishing metal and other acrylics.
Downloads
Lisko-B polishing discs
Lisko-B polishing discs

Lisko-B is a prepolishing discs with remarkably higher endurance. Lisko-B is always used with supporting discs on both sides. If the disc is ablated up to the supporting discs, these can be removed and the disc can still be used.

Usage
Recommended number of revs. 10 000/min.
Delivery Forms
Order No.
Description
Contents
Unit
Lisko-B polishing discs
10
pieces
Lisko-B polishing discs
100
pieces
Downloads
Lisko-S polishing discs
Lisko-S polishing discs

Lisko-S polishing discs have a half-open stabilized structure.

Usage
Ideal speed range 4000 - 12000 rpm. Wear protective glasses.
Delivery Forms
Order No.
Description
Contents
Unit
Lisko-S polishing discs, turquoise
10
pieces
Lisko-S polishing discs, turquoise
100
pieces
Application
For prepolishing and working soft materials and for prepolishing hard materials.
Downloads
Liskoid
Liskoid

Liskoid is a stable pressed disc (DBGM), ideally suited for prepolishing narrow spaces of thermoformed splints.

Delivery Forms
Order No.
Description
Contents
Unit
Liskoid
6
pieces
Liskoid
100
pieces
Application
For very narrow zones, the disc can be sharpened with a sand paper.
Downloads
Liskosil-l
Liskosil-l

Liskosil-l, diametre app. 27 mm, thickness app. 4 mm, is particularly suitable for large-area processing. Larger quantities of material can be removed without leaving an edgy surface.

Material Specification
Liskosil is a fine-abrasive polishing disc with an enormous service-life, which not only allows fine-grained removal of material, but also removes larger quantities of material by increasing the contact pressure. No matter whether it is coarse or fine sanding, a fine, slightly mat surface is always left, which in many cases does not require a high gloss polish.
Usage
Ideal speed range for Liskosil, 5.000 - 10.000 rpm, wear protective glasses.
Delivery Forms
Order No.
Description
Contents
Unit
Liskosil-l
6
pieces
Liskosil-l
100
pieces
Application
For all thermoforming materials, printed and milled plastics, also metals and silicones.
Liskosil-m
Liskosil-m

Liskosil-m, diametre app. 27 mm, thickness app. 2 mm, allows the same result as Liskosil-l in narrow areas, e.g. in the papilla area of a splint.

Material Specification
Liskosil is a fine-abrasive polishing disc with an enormous service-life, which not only allows fine-grained removal of material, but also removes larger quantities of material by increasing the contact pressure. No matter whether it is coardse or fine sanding, a fine, slightly mat surface is always left, which in many cases does not require a high gloss polish.
Usage
Ideal speed range for Liskosil, 5.000 - 10.000 rpm, wear protective glasses.
Delivery Forms
Order No.
Description
Contents
Unit
Liskosil-m
6
pieces
Liskosil-m
100
pièces
Application
For all thermoforming materials, printed and milled plastics, also metals and silicones.
Liskosil-s
Liskosil-s

Liskosil-s, diametre app. 16 mm, thickness app. 2 mm. The small diametre allows the processing of occlusal interferences and even of the inner surface of a splint.

Material Specification
Liskosil is a fine-abrasive polishing disc with an enormous service-life, which not only allows fine-grained removal of material, but also removes larger quantities of material by increasing the contact pressure. No matter whether it is coarse or fine sanding, a fine, slightly mat surface is always left, which in many cases does not require a high gloss polish.
Usage
Ideal speed range for Liskosil, 5.000 - 10.000 rpm, wear protective glasses.
Delivery Forms
Order No.
Description
Contents
Unit
Liskosil-s
6
pieces
Liskosil-s
100
pieces
Application
For all thermoforming materials, printed and milled plastics, also metals and silicones.
Liskosil-set
Liskosil-set

Liskosil start set, one disc each of Liskosil -s (approx. 16 mm diameter and 2 mm thickness), Liskosil -m (approx. 27 mm diameter and 2 mm thickness), Liskosil -l (approx. 27 mm diameter and 4 mm thickness) and 3 mandrel

Material Specification
Liskosil is a fine-abrasive polishing disc, which does not only allow for finely dosed removal of material but can also very quickly remove larger amounts of material through increased contact pressure. No matter if the surface will be polished coarsely or finely, the result will always be a smooth and slightly mat surface, which – in most cases – will make a high-gloss polish unnecessary.
Usage
Ideal speed range for Liskosil, 5 000 - 10 000 rpm, wear protective goggles.
Delivery Forms
Order No.
Description
Contents
Unit
Liskosil-set
3
pieces
Delivery Contents
One polishing disc each, -s, -m, -l and 3 mandrels
Application
For all thermoforming materials, printed and milled plastics, also metals and silicones.
Downloads
Polishing disc out of linen
Polishing disc out of linen

Polishing disc out of linen.

Delivery Forms
Order No.
Description
Contents
Unit
Polishing disc out of linen
3
pieces
Application
To polish hard thermoforming materials with special polishing mass.
Downloads
Polishing set
Polishing set

Set to polish hard thermoforming materials with the techical handpiece.

Delivery Forms
Order No.
Description
Contents
Unit
Polishing set
1
package
Delivery Contents
60 g special polishing mass, 3 polishing discs packed in an Erkodent splintbox
Application
For polishing hard thermoforming materials.
Downloads
special polishing mass
special polishing mass

The special polishing mass is made for hard thermoforming materials, but is also suited to polish other hard plastics.

Delivery Forms
Order No.
Description
Contents
Unit
special polishing mass
1
piece
Downloads
Special scissors for mouthguards
Special scissors for mouthguards

To cut out all soft thermoforming materials and hard foils up to max. 1.0 mm thickness.

Delivery Forms
Order No.
Description
Contents
Unit
Special scissors for mouthguards
1
piece
Downloads
Take-off pliers
Take-off pliers

Pliers for easily taking hard thermoformed splints off the model.

Delivery Forms
Order No.
Description
Contents
Unit
Take-off pliers
1
piece
Downloads
Videos
Tungsten carbide bur, coarsely crosscut
Tungsten carbide bur, coarsely crosscut

Coarsely crosscut tungsten carbide bur, suitable for a fast elaboration of Erkoplast PLA material.

Usage
Approx. 15.000 rev./min.
Delivery Forms
Order No.
Description
Contents
Unit
Tungsten carbide bur, coarsely crosscut
1
piece
Downloads
Tungsten carbide bur, crosscut, pear-shaped
Tungsten carbide bur, crosscut, pear-shaped

Crosscut pear-shaped tungsten carbide bur to grind occlusal splints.

Delivery Forms
Order No.
Description
Contents
Unit
Tungsten carbide bur, crosscut, pear-shaped
1
piece
Downloads
Twist drill HSS Ø 1.0 mm
Twist drill HSS Ø 1.0 mm

HSS-twist drill for more precise contours, for hard and semi-hard splints, for ex. out of Erkodur or Erkolen.
• diameter 1 mm
• higher resistance to rupture

Usage
At high tours (20 - 40 000). Work without any pressure.
Delivery Forms
Order No.
Description
Contents
Unit
Twist drill HSS Ø 1.0 mm
3
pieces
Downloads
Twist drill HSS Ø 1.4 mm
Twist drill HSS Ø 1.4 mm

Twist drill. 1,4 mm diameter

Usage
At high tours (20 - 40 000). Work without any pressure.
Delivery Forms
Order No.
Description
Contents
Unit
Twist drill HSS Ø 1.4 mm
5
pieces
Application
Bur to drill the holes for the spacer holding pins in the fabrication of the Silensor-sl.
