Dental Orthopedics

Thermoforming accessories

Cover template for filling granulate, 4 sizes
Cover template for filling granulate, 4 sizes

Prepunched in 4 sizes (2 for upper jaw, 2 for lower jaw), to cover the filling granules.

Usage
Embed the model into the granules and cover the granules with a cover template.
Delivery Forms
Order No.
Description
Contents
Unit
Cover template for filling granulate, 4 sizes
2
pces.each
Application
Recommended when soft materials are thermoformed without insulating foil. The filling granules do not stick to the foil.
Downloads
Degreasing agent
Degreasing agent

For cleaning and degreasing of Erkoflex before combination.

Delivery Forms
Order No.
Description
Contents
Unit
Degreasing agent
50
ml
Application
When fabricating Playsafe sports mouthguards or positioners. Ensures the firm bonding between Erkoflex-types.
Downloads
Die disc for 7 dies
Die disc for 7 dies

Accessories Erkoform-RVE unit.

Usage
Erkolen for soft copings and Erkodur for hard copings. When using Erkolen an UZF spacer foil is needed to compensate shrinkage. Erkodur includes a spacer foil.
Delivery Forms
Order No.
Description
Contents
Unit
Die disc for 7 dies
1
piece
Application
Copings with the Erkoform-RVE.
Downloads
Erkobox
Erkobox

Stable, spacious box. Inner height: 40 mm

Usage
Special colours available upon inquiry.
Delivery Forms
Order No.
Description
Contents
Unit
Erkobox
20
pieces
Application
To hygienically keep sports mouthguards, positioners, Silensor-sl snoreguards, etc.
Downloads
Erkoflexsticks-82
Erkoflexsticks-82

Shore A hardness 82 similar to Erkoflex.

Medial Product Class 1

Usage
Erkoflexsticks are used in the special nozzle (bigger outlet).
Delivery Forms
Order No.
Description
Contents
Unit
Erkoflexsticks-82
18
pieces
Application
To combine the upper and lower splints when producing positioners and to fix models for articulation.
Downloads
Erkoflexsticks-95
Erkoflexsticks-95

Shore A hardness 95 similar to Erkoflex 95.

Medial Product Class 1

Usage
Erkoflexsticks are used in the special nozzle (bigger outlet).
Delivery Forms
Order No.
Description
Contents
Unit
Erkoflexsticks-95
18
pieces
Application
To adjust occlusal splints out of Erkoflex 95.
Downloads
Erkopor black
Erkopor black

Erkopor black foam rubber discs are used as spacers and to create a rough inner surface when fabricating individual impression trays.
Thickness 8 mm, for Erkopress-units
Thickness 3 mm, for Erkoform-units

Delivery Forms
Order No.
Description
Contents
Unit
Erkopor black, 8,0 mm, Ø 95 mm
16
pieces
Erkopor black, 3,0 mm, Ø 95 mm
40
pieces
Downloads
Videos
Erkosit
Erkosit

Acrylic (powder + liquid) for the fabrication of temporary appliances. Especially suited for the durable combination with Erkodur using PV-Primer .

Medial Product Class 1

Material Specification
Erkosit is a self polymerizing resin on polymethylmethacrylate base. It is cadmium free and free from tertiary amines. It hardends with lowest heat development and poorest shrinkage.
Delivery Forms
Order No.
Description
Contents
Unit
Erkosit Set
1
package
Erkosit liquid
100
ml
Erkosit powder light
100
g
Erkosit powder dark
100
g
Downloads
Filling compound for form pot (Erkomini)
Filling compound for form pot (Erkomini)

Accessories Erkomini.

Delivery Forms
Order No.
Description
Contents
Unit
Filling compound for form pot (Erkomini)
50
g
Application
Manual production of copings.
Downloads
Filling granules rounded, high-grade steel
Filling granules rounded, high-grade steel

Filling granules to fill undercuts and to limit the model height. Rounded edges to avoid small tears in thin foils.

Usage
Embed the model into the granules. Please do not mix these filling granules with other.
Delivery Forms
Order No.
Description
Contents
Unit
Filling granules rounded, high-grade steel
1,3
kg
Application
Allows the use of models without plane trimmed model base.
Downloads
Filling granules, fine
Filling granules, fine

Fine granules for stable fixation of dies
without pins.

Usage
The dies are put into the fine granules. Compress the granules well to avoid holes in the foils and to avoid that the dies sink during thermoforming.
Delivery Forms
Order No.
Description
Contents
Unit
Filling granules, fine
1,3
kg
Application
Copings
Downloads
Foilholder (Erkomini)
Foilholder (Erkomini)

Accessories Erkomini.

Delivery Forms
Order No.
Description
Contents
Unit
Foilholder (Erkomini)
2
pieces
Application
Manual production of copings.
Downloads
Form pot with filling compound (Erkomini)
Form pot with filling compound (Erkomini)

Accessories Erkomini.

Delivery Forms
Order No.
Description
Contents
Unit
Form pot with filling compound (Erkomini)
1
piece
Application
Manual production of copings.
Downloads

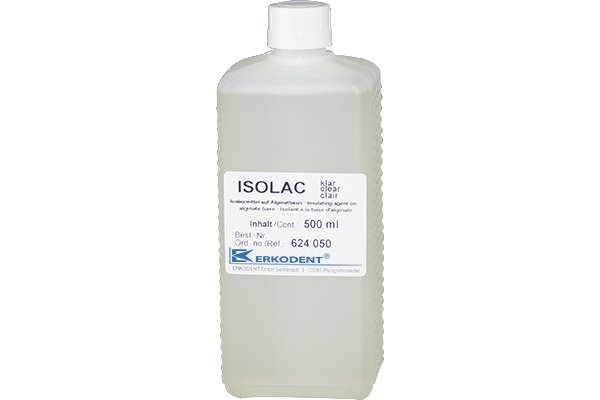

Isolac klar
Isolac klar

Insulating agent on alginate base.

Material Specification
Colourless, ideal for fabrication of absolutely transparent splints out of thermoforming materials without insulating foil.
Delivery Forms
Order No.
Description
Contents
Unit
Isolac clear
500
ml
Isolac clear
1000
ml
Application
For insulation of plaster against plastic.
Downloads

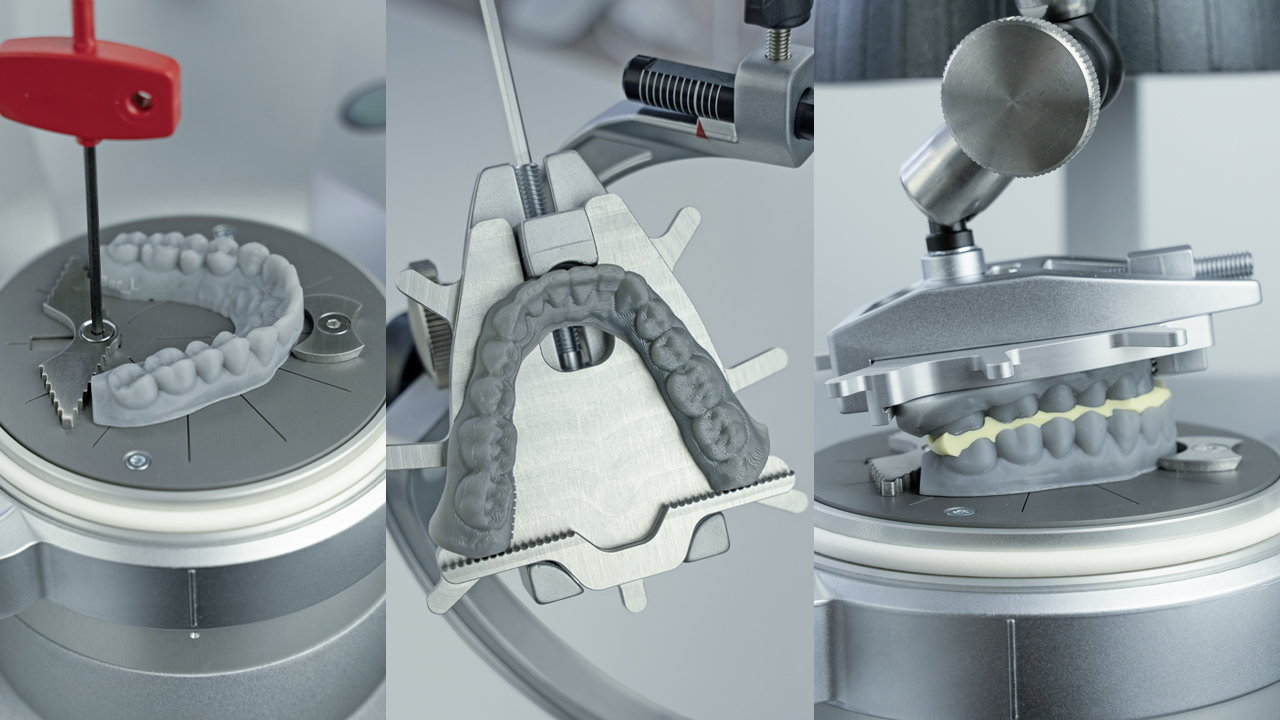

Occ3-4p
Occ3-4p

Special device and construction data for fixation of 3d print
models in the Occluform-3 device.

Delivery Forms
Order No.
Description
Contents
Unit
Occ3-4p
1
Delivery Contents
4p-special model disc, 4p counter bite fixation,
construction data (download)
Application
With Occ3-4p the advantages of the Occluform-3 when
adjusting thermoformed occlusal splints can also be used
for print models without base.
Downloads
on-off Magnet
on-off Magnet

Magnet to collect high-grade steel granules. The granules will be strongly attracted but do no longer have to be plucked with effort from the magnet. Pull once at the handle and the granules fall off again.

Delivery Forms
Order No.
Description
Contents
Unit
on-off magnet, red
1
piece
on-off magnet, green
1
piece
Videos
Orientation balls
Orientation balls

Out of high-grade steel.

Medial Product Class 1

Usage
Cold sterilizable with the splint.
Delivery Forms
Order No.
Description
Contents
Unit
Orientation balls
10
pieces
Delivery Contents
10 orientation balls and 1 rose bur
Application
For the fabrication of radiologic measuring splints (recomm. Erkodur) in implantology.
Downloads
PLA-handles
PLA-handles

White tray handles out of PLA plastic, high or flat grip shape.

Medial Product Class 1

Usage
The base of the PLA handle and the ridge should roughly fit together. If necessary, soften the handle by heating in boiling water, with the hot air burner or a heat gun and adapt it.
Delivery Forms
Order No.
Description
Contents
Unit
PLA-handles high
50
pieces
PLA-handles flat
50
pieces
Application
Functional and individual impression trays. The handles can be reliably affixed by heat to thermoformed impression trays out of Erkoplast PLA. In appropriate units this is already possible during the thermoforming process. For Erkoplast-PLA no LG-Primer is needed.
Downloads
Videos
prebite Dott. Pelosi
prebite Dott. Pelosi

Occlusal splint moulding blank for immediate direct adaptation to the patient.
• prebite Dott. Pelosi, 85 10 20, thickness 3.5 mm
• prebite Dott. Peolsi up, 85 10 16, thickness 7.0 mm

Medial Product Class 1

Usage
In 5 minutes, the splint is ready to go. Soften moulding blank for 10-15 seconds in boiling water, shortly dip in cold water and adapt onto the lower jaw, have the patient bite and wait for approx. 2 minutes, take it out and cut the handle, finished.
Delivery Forms
Order No.
Description
Contents
Unit
Prebite Dott. Pelosi up
16
pieces
Prebite Dott. Pelosi
20
pieces
Application
For the fabrication of temporary semi-hard occlusal splints for immediate pain release and splint effectiveness testing.
Downloads

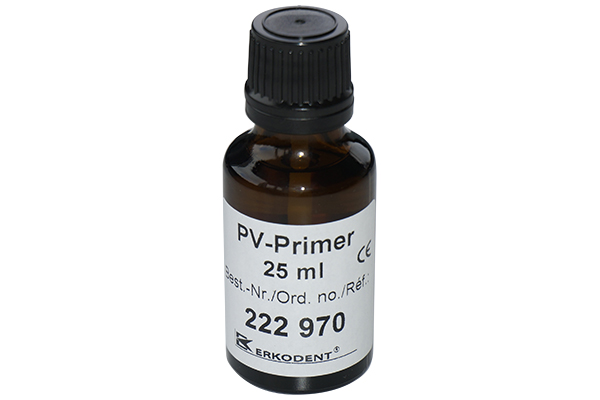

PV-Primer
PV-Primer

The PV-Primer allows the bond of thermoformed moulds out of Erkodur and Erkodur-0M1/-A1/-A2/-A3 with acrylics of cartridge systems.

Medial Product Class 1

Usage
For this the thermoformed mould out of Erkodur and Erkodur-0M1/-A1/-A2/-A3 is brushed with primer and afterwards the cartridge-acrylics is filled onto the still damp primer into the mould.
Delivery Forms
Order No.
Description
Contents
Unit
PV-Primer
25
ml
Application
Temporary appliance combined of foil and acrylic.
Downloads

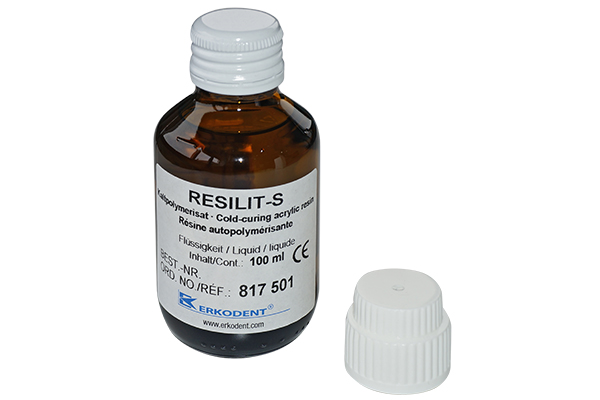

Resilit-S Cold-curing acrylic resin
Resilit-S Cold-curing acrylic resin

Repair and pouring resin, powder and liquid. Cold-curing acrylic resin to fabricate dentures and for repairs.

Medial Product Class 1

Material Specification
Stable colour due to catalyst without tertiary amines.
Delivery Forms
Order No.
Description
Contents
Unit
Resilit-S cold curing resin, liquid
100
ml
Resilit-S cold curing resin, powder pink
100
g
Resilit-S cold curing resin, powder clear
100
g
Resilit-S cold curing resin, liquid
500
ml
Resilit-S cold curing resin, powder pink
500
g
Resilit-S cold curing resin, powder clear
500
g
Application
Especially suited for building-up thermoforming splints. With tested biocompatibility.
Downloads
Special top for fusing gun
Special top for fusing gun

Screw-top for commercially available fusing gun, recommended power ≥ 500 W.

Delivery Forms
Order No.
Description
Contents
Unit
Special top for fusing gun
1
piece
Downloads
Splintbox
Splintbox

Transpartent box for hygienic storage of splints. Inner height: 25 mm.

Delivery Forms
Order No.
Description
Contents
Unit
Splintbox
20
pieces
Application
For bleaching splints, nightguards, retainers etc.
Downloads
Take-off pliers
Take-off pliers

Pliers for easily taking hard thermoformed splints off the model.

Delivery Forms
Order No.
Description
Contents
Unit
Take-off pliers
1
piece
Downloads
Videos

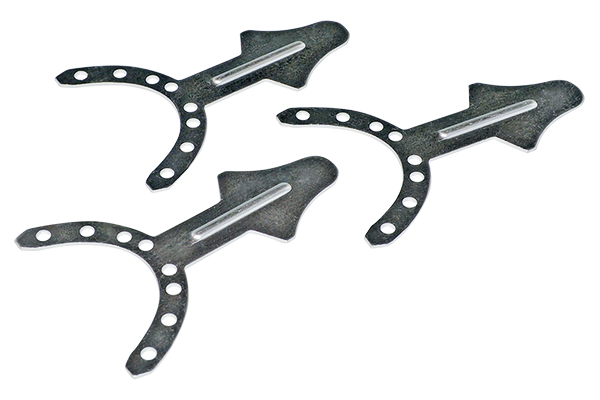

Tray handles out of aluminium
Tray handles out of aluminium

Tray handles out of aluminium, short version, to melt in thermoformed impression trays.

Medial Product Class 1

Usage
The handles can be adapted to the contour of the tray before melting in. Heat the punched area of the tray handle over the flame and press it into the plastic. Flatten the melting that comes out of the holes.
Application
Individual impression trays, functional trays.
Downloads

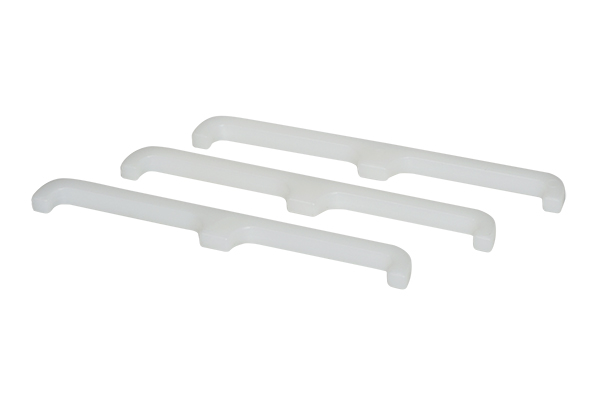

Tray handles out of plastic
Tray handles out of plastic

Thermoplastic tray handles for softening over a flame.

Medial Product Class 1

Usage
Heat over a flame before thermoforming, bent along the dental arch and fix with sticky wax or Erkogum.
Delivery Forms
Order No.
Description
Contents
Unit
Tray handles, plastic
100
pieces
Tray handles, plastic
500
pieces
Application
Especially suited for stabilizing individual lower jaw impression trays.
Downloads
Worktray white
Worktray white

Delivery Forms
Order No.
Description
Contents
Unit
Worktray white
1
piece
Downloads
