Vacuum thermoforming unit with automated thermoforming process.
Thermoforming units from the expert
Erkodent produces reliable vacuum and pressure forming units. High-quality thermoforming results will be achieved with the Erkodent vacuum units as well as with the pressure forming units. If you wish to also imprint the opposing bite during thermoforming in one working-step, we recommend the combination of an Erkoform vacuum unit (serie 3) and our integrable occludator Occluform-3.
Erkoform-3d motion
Erkoform-3d+
Vacuum thermoforming unit without automated thermoforming process.
Occluform-3
A unique occludator for the Erkoform units serie 3.
Erkopress ci motion
Pressure forming unit with automated thermoforming process with self-sufficient, integrated compressed-air production.
Erkopress motion
Pressure forming unit with automated thermoforming process to be connected to the existing compressed-air system.
Erkopress 240
Pressure forming unit with automated thermoforming process for up to 9 models to be connected to the existing compressed-air system.
Erkomini
Small thermoforming appliance for the production of copings.
| Erkoform-3d motion | Erkoform-3d+ | Erkopress motion | Erkopress ci motion | |
|---|---|---|---|---|
| Compressed air supply required | no | no | yes | no |
| Touchless temperature sensor | yes | yes | yes | yes |
| Medium-wave infrared heater | yes | yes | yes | yes |
| Preheating time | no | no | no | no |
| Reserve vacuum or reserve compressed air | yes | yes | no | yes |
| Foil thickness from 0 to 5.5 mm | yes | yes | yes | yes |
| Vertical prestretching and adaptiation | yes | yes | yes | yes |
| Delay free adaptation | yes | yes | yes | yes |
| Adjustment with Occluform-3 | yes | yes | no | no |
| Variable power for adaptation | no | no | yes | no |
| Touchpanel | yes | yes | yes | yes |
| All program features | yes | yes | yes | yes |

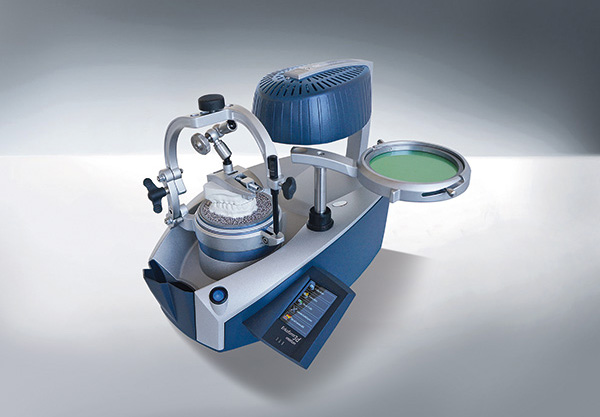

Erkoform-3d motion
Thermoforming unit with automated thermoforming process.
A large volume reserve vacuum is being held to allow a sudden forming. A sensor for touchless temperature measurement ensures the accurate temperature of the material for the thermoforming regardless of the ambient temperature. The unit is equipped with a medium-wave infrared heating, which doesn’t need preheating time. The medium-wave allows for the materials to heat up not only on the surface but also in-depth. The result is a less stressed splint. The Occluform-3 can be installed (accessory).
Technical Specification
• H 31,5 / W 35 / D 37 cm
• weight 13,9 kg
• foil diameter 120 mm
• foil thickness 0 - 5.5 mm
• ~220 - 240 (110 - 120) (100) volts, 50 - 60 hertz
• power: 340 watt
• max. vacuum 0.8 bar
• noise level < 60 dB(A)
• weight 13,9 kg
• foil diameter 120 mm
• foil thickness 0 - 5.5 mm
• ~220 - 240 (110 - 120) (100) volts, 50 - 60 hertz
• power: 340 watt
• max. vacuum 0.8 bar
• noise level < 60 dB(A)
Usage
• Program the foil, insert foil, start the heating process, place the model now at the latest, everything else will be done by the Erkoform-3d motion!
• No compressed air supply required, plug and play.
• No preheating time needed.
• Touchless temperature sensor to exactly determine the actual temperature (patented) of the thermoforming material.
• Prior to the thermoforming process built up vacuum with sudden forming.
• Vertical pre-stretching and fitting for even foil thicknesses.
• To position the foil, with foil thicknesses of 0 to 5.5 mm, the unit can be operated conveniently with one hand.
• Easily accessible model during heating period.
• Acoustic and visual signal (suitable for people with impaired hearing).
• No compressed air supply required, plug and play.
• No preheating time needed.
• Touchless temperature sensor to exactly determine the actual temperature (patented) of the thermoforming material.
• Prior to the thermoforming process built up vacuum with sudden forming.
• Vertical pre-stretching and fitting for even foil thicknesses.
• To position the foil, with foil thicknesses of 0 to 5.5 mm, the unit can be operated conveniently with one hand.
• Easily accessible model during heating period.
• Acoustic and visual signal (suitable for people with impaired hearing).
Delivery Forms
Order No.
Description
Contents
Unit
Delivery Contents
188400 Erkoform-3d motion, foil trial package, foil securing ring, granules collecting device, model plate, granules pot, brush for filling granules with rubber cap, on-off magnet, power supply cable, worktray white, filling granules, machine documents (folder)
Application
For all applications in the dental thermoforming technique.
Downloads
Videos

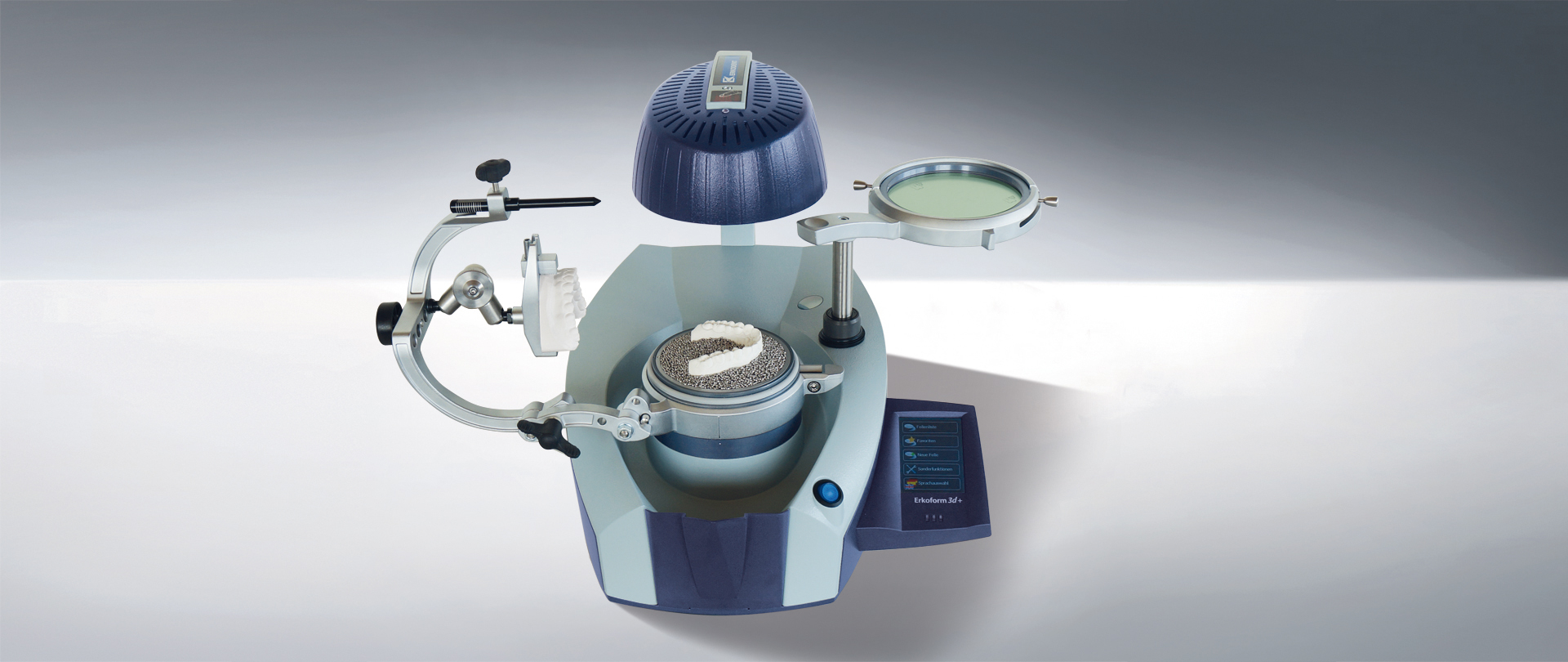

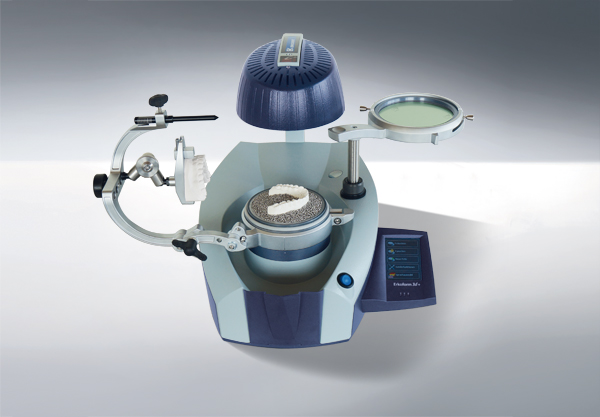

Erkoform-3d+
The Erkoform-3d+ has the same characteristics as the Erkoform-3dmotion but without automated thermoforming process. Also the touchpanel functions are the same. A large volume reserve vacuum is being held to allow a sudden forming. A sensor for touchless temperature measurement ensures the accurate temperature of the material for the thermoforming regardless of the ambient temperature. The unit is equipped with a medium-wave infrared heating, which doesn’t need preheating time. The medium-wave allows for the materials to heat up not only on the surface but also in-depth. The result is a less stressed splint.
The Occluform-3 can be installed (accessory).
Technical Specification
• H 31,5 / W 35 / D 37 cm
• weight 11,9 kg
• foil diameter 120 mm
• foil thickness 0 - 5.5 mm
• ~220 - 240 (110 - 120) (100) volts, 50 - 60 hertz
• power: 340 watt
• max. vacuum 0.8 bar
• noise level < 60 dB(A)
• weight 11,9 kg
• foil diameter 120 mm
• foil thickness 0 - 5.5 mm
• ~220 - 240 (110 - 120) (100) volts, 50 - 60 hertz
• power: 340 watt
• max. vacuum 0.8 bar
• noise level < 60 dB(A)
Usage
• Program the foil, insert foil, start the heating process, place the model now at the latest, the display leads with as short guide with animations through the sequence of work and indicates the required working steps.
• No compressed air supply required, plug and play.
• No preheating time needed.
• Touchless temperature sensor to exactly determine the actual temperature (patented) of the thermoforming material.
• Prior to the thermoforming process built up vacuum with sudden forming.
• Vertical pre-stretching and fitting for even foil thicknesses.
• To position the foil, with foil thicknesses of 0 to 5.5 mm, the unit can be operated conveniently with one hand.
• Easily accessible model during heating period.
• Acoustic and visual signal (suitable for people with impaired hearing).
• The display informs about each operating status and the remaining time.
• No compressed air supply required, plug and play.
• No preheating time needed.
• Touchless temperature sensor to exactly determine the actual temperature (patented) of the thermoforming material.
• Prior to the thermoforming process built up vacuum with sudden forming.
• Vertical pre-stretching and fitting for even foil thicknesses.
• To position the foil, with foil thicknesses of 0 to 5.5 mm, the unit can be operated conveniently with one hand.
• Easily accessible model during heating period.
• Acoustic and visual signal (suitable for people with impaired hearing).
• The display informs about each operating status and the remaining time.
Delivery Forms
Order No.
Description
Contents
Unit
Delivery Contents
188600 Erkoform-3d+, foil trial package, foil securing ring, granules collecting device, model plate, granules pot, brush for filling granules with rubber cap, on-off magnet, power supply cable, worktray white, filling granules, machine documents (folder)
Application
For all applications in the dental thermoforming technique.
Downloads
Videos
Erkomini
Small thermoforming appliance
Usage
Plastification over a Bunsen burner.
Delivery Forms
Order No.
Description
Contents
Unit
Delivery Contents
foil holder, form pot, 100 Erkolen-A foils thickness 0.6 mm, 100 spacer foils thickness 0.1 mm, foils-Ø 42 mm
Application
Manual production of copings.
Downloads

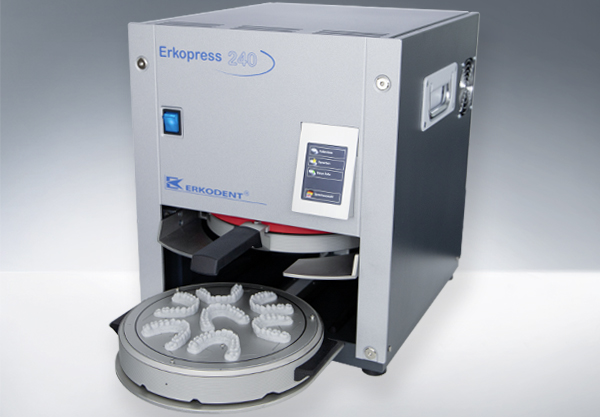

Erkopress 240
Pressure forming device with automated thermoforming process for up to 6 models with base and for up to 9 models without base, to connect with the existing compressed air system.
• The unit works with an overpressure of up to 4,5 bar. It thus meets the desire of many users to thermoform 3d print models with overpressure.
Technical Specification
• height 40 / width 34,5 / depth 59 cm
• weight 47 kg
• foil diameter 240 mm, thickness 0 - 2.0 mm
• operating voltage: ~220 - 240 (100, 110 - 120) volt, 50 - 60 hertz
• wattage: max. 1100 watt
• working pressure 4,5 bar, required mains system pressure > 6 bar
• noise level < 80 dB(A)
• weight 47 kg
• foil diameter 240 mm, thickness 0 - 2.0 mm
• operating voltage: ~220 - 240 (100, 110 - 120) volt, 50 - 60 hertz
• wattage: max. 1100 watt
• working pressure 4,5 bar, required mains system pressure > 6 bar
• noise level < 80 dB(A)
Usage
Only thermoforming plates with a diametre of 240 mm can be processed. The thermoforming process is completely automated, the available plates are stored in the program and can be called up in the display with the respective parameters.
Delivery Forms
Order No.
Description
Contents
Unit
Delivery Contents
1 Erkopress 240, 179 000, with
1 foil securing ring (179 015)
1 foil reception (179 010)
1 form pot with model disc support (179 005)
2 model discs (1 pcs. 179 020)
1 power supply cable (170 001)
1 hose connection
1 brush as an input pen
1 test foils
machine documents (folder), instructions, guarantee card
1 foil securing ring (179 015)
1 foil reception (179 010)
1 form pot with model disc support (179 005)
2 model discs (1 pcs. 179 020)
1 power supply cable (170 001)
1 hose connection
1 brush as an input pen
1 test foils
machine documents (folder), instructions, guarantee card
Application
• The Erkopress 240 enables the efficient production of correction splints/aligners or other series or larger numbers of splints.
Downloads
Videos

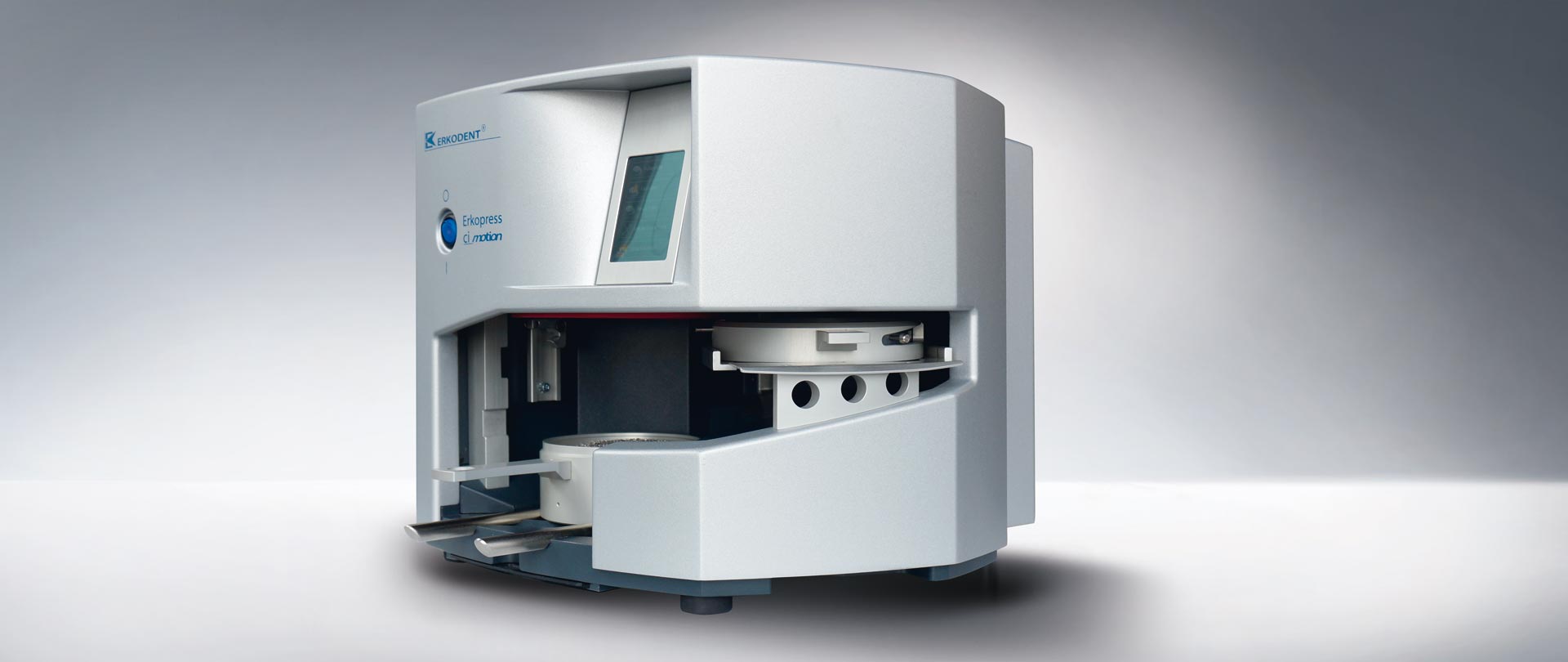

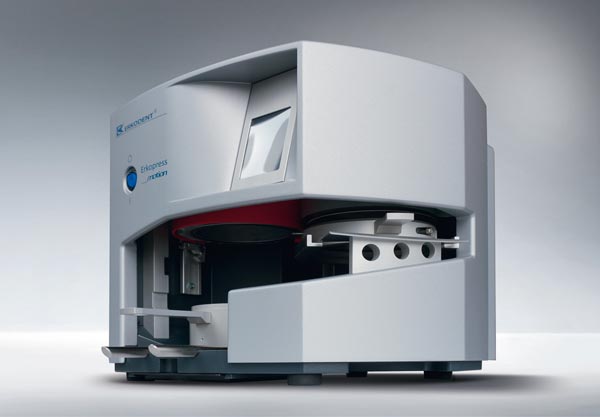

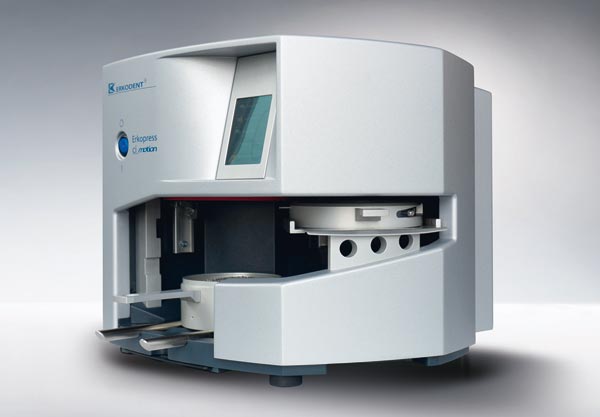

Erkopress ci_motion
Pressure forming unit with automated thermoforming process
with self-sufficient, integrated production of compressed air. The Erkopress ci motion has a powerful, integrated compressor with reserve compressed air. Thereby the unit is independent of a compressed air system that possibly has to be installed.
Technical Specification
• H 32 / W 35 / D 43 cm
• weight 21,3 kg
• foil diameter 120 mm
• foil thickness 0 - 5.5 mm
• ~220 - 240 (100, 110 - 120) Volt, 50 - 60 Hertz
• power: 440 watt
• noise level < 70 dB(A)
• working pressure 6 bar
• weight 21,3 kg
• foil diameter 120 mm
• foil thickness 0 - 5.5 mm
• ~220 - 240 (100, 110 - 120) Volt, 50 - 60 Hertz
• power: 440 watt
• noise level < 70 dB(A)
• working pressure 6 bar
Usage
Program the foil • Insert foil • Start the heating process
• Place model • Everything else will be done by the device
• The thermoforming process as well as the cooling time will run automatically.
• Touchless temperature sensor to exactly determine the actual temperature (patented) of the thermoforming materials.
• For uniform wall thicknesses the hot foil will be placed vertically onto the model.
• The adaption is taking place without delay.
• Outstanding workplace safety through automatic switch-off function.
• Pinch protection during the automated thermoforming.
• The medium-wave infrared heating without preheating time, heats up the material not only on the surface but also indepth.
• Easily accessible model during heating period.
• Acoustic and visual signal (suitable for people with impaired hearing).
• Program-controlled function and process.
• The program contains all Erkodent thermoforming materials and as a quick guide, supported by animations, it leads through the workflow and signalizes the necessary work steps.
• Select the desired foil and thickness and start the process.
• Frequently used foils, new foils and even modified factory settings can be saved as favorites.
• Place model • Everything else will be done by the device
• The thermoforming process as well as the cooling time will run automatically.
• Touchless temperature sensor to exactly determine the actual temperature (patented) of the thermoforming materials.
• For uniform wall thicknesses the hot foil will be placed vertically onto the model.
• The adaption is taking place without delay.
• Outstanding workplace safety through automatic switch-off function.
• Pinch protection during the automated thermoforming.
• The medium-wave infrared heating without preheating time, heats up the material not only on the surface but also indepth.
• Easily accessible model during heating period.
• Acoustic and visual signal (suitable for people with impaired hearing).
• Program-controlled function and process.
• The program contains all Erkodent thermoforming materials and as a quick guide, supported by animations, it leads through the workflow and signalizes the necessary work steps.
• Select the desired foil and thickness and start the process.
• Frequently used foils, new foils and even modified factory settings can be saved as favorites.
Delivery Forms
Order No.
Description
Contents
Unit
Delivery Contents
173500 Erkopress ci_motion, 1 foil securing ring, 1 foil reception, 1 granules collecting device, 1 model disc, 1 form pot, 1 brush for filling granules with rubber cap, 1 on-off Magnet red or green, 1 filling granules (supplied with the unit 1.8 kg), 1 worktray white, 1 power supply cable, 1 foil trial package, 1 machine documents (folder).
Application
For all applications in the dental thermoforming technique.
Downloads

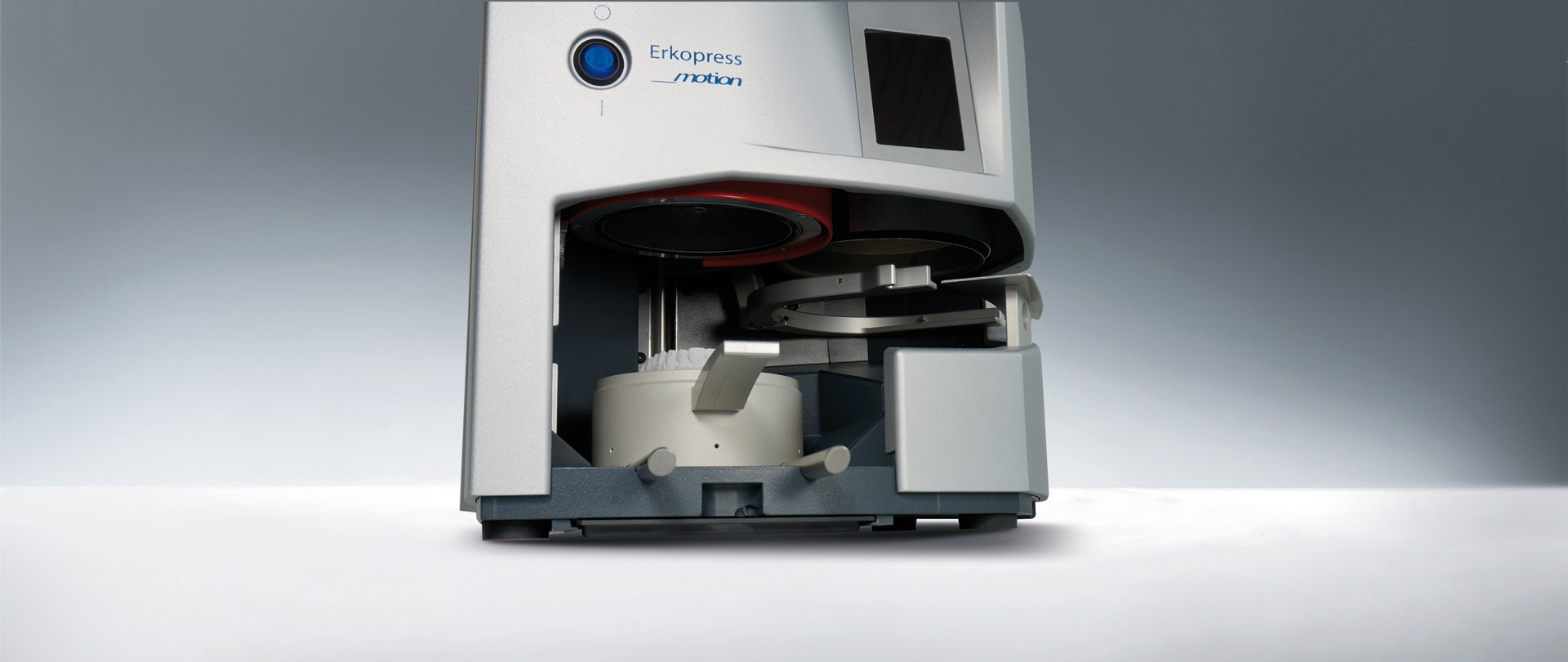

Erkopress_motion
Pressure forming device with automated thermoforming process to connect with the existing compressed air system. The medium-wave infrared heating without preheating time, heats up the material not only on the surface but also in-depth.
Technical Specification
• H 32 / W 35 / D 43 cm
• weight 18,9 kg
• foil diameter 120 mm
• foil thickness 0 - 5.5 mm
• ~220 - 240 (100, 110 - 120) Volt, 50 - 60 Hertz, max. 380 Watt
• power: 380 watt
• noise level < 70 dB(A)
• working pressure 6 bar
• weight 18,9 kg
• foil diameter 120 mm
• foil thickness 0 - 5.5 mm
• ~220 - 240 (100, 110 - 120) Volt, 50 - 60 Hertz, max. 380 Watt
• power: 380 watt
• noise level < 70 dB(A)
• working pressure 6 bar
Usage
Program the foil • Insert foil • Start the heating process
• Place model • Everything else will be done by the device
• The thermoforming process as well as the cooling time will run automatically.
• Touchless temperature sensor to exactly determine the actual temperature (patented) of the thermoforming materials.
• For uniform wall thicknesses the hot foil will be placed vertically onto the model.
• The adaption is taking place without delay.
• Outstanding workplace safety through automatic switch-off function.
• Pinch protection during the automated thermoforming.
• The medium-wave infrared heating without preheating time, heats up the material not only on the surface but also indepth.
• Easily accessible model during heating period.
• Acoustic and visual signal (suitable for people with impaired hearing).
• Program-controlled function and process.
• Air regulator with gauge and water separator
• The program contains all Erkodent thermoforming materials and as a quick guide, supported by animations, it leads through the workflow and signalizes the necessary work steps.
• Select the desired foil and thickness and start the process.
• Frequently used foils, new foils and even modified factory settings can be saved as favorites.
• Place model • Everything else will be done by the device
• The thermoforming process as well as the cooling time will run automatically.
• Touchless temperature sensor to exactly determine the actual temperature (patented) of the thermoforming materials.
• For uniform wall thicknesses the hot foil will be placed vertically onto the model.
• The adaption is taking place without delay.
• Outstanding workplace safety through automatic switch-off function.
• Pinch protection during the automated thermoforming.
• The medium-wave infrared heating without preheating time, heats up the material not only on the surface but also indepth.
• Easily accessible model during heating period.
• Acoustic and visual signal (suitable for people with impaired hearing).
• Program-controlled function and process.
• Air regulator with gauge and water separator
• The program contains all Erkodent thermoforming materials and as a quick guide, supported by animations, it leads through the workflow and signalizes the necessary work steps.
• Select the desired foil and thickness and start the process.
• Frequently used foils, new foils and even modified factory settings can be saved as favorites.
Delivery Forms
Order No.
Description
Contents
Unit
Delivery Contents
173000 Erkopress motion, 1 foil securing ring, 1 foil reception, 1 granules collecting device, 1 model disc, 1 form pot, 1 brush for filling granules with rubber cap, 1 on-off Magnet red or green, 1 filling granules (supplied with the unit 1.8 kg), 1 worktray white, 1 power supply cable, 1 foil trial package, 1 machine documents (folder).
Application
For all applications in the dental thermoforming technique.
Downloads
Videos
Occluform-3
The Occluform-3 is an occludator that can be integrated in a thermoforming unit to imprint the opposing bite (pat. 19915567) and can only be installed at the Erkoform units serie 3.The construction of the Occluform-3 unit is based on a Bonwill triangle with side length of 11.5 cm and a Balkwill angle of 20°.
Usage
The construction dimensions of the Occluform-3 allow a bite elevation at average values. The elevation of 1 line at the supporting pin corresponds to approx. 1 mm bite elevation at the incisal point.
If a construction bite is at disposal the models are articulated in the Occluform-3 using this construction bite
If a construction bite is at disposal the models are articulated in the Occluform-3 using this construction bite
Delivery Forms
Order No.
Description
Contents
Unit
Delivery Contents
188580 Occluform-3, occludating bow with fixation ring for Erkoform units serie 3, model pot for fixation of the model in the unit form pot, Occ3-aM with model pot support, granules shovel, hexagonal socket wrench size 3
Application
The Occluform-3 allows to directly imprint the opposing bite in the Erkoform units serie 3 during the thermoforming process!
Downloads
Videos
