Foils from the expert.
Erkodent offers for each purpose the optimal material. We provide detailed instructions with the foils and plates for the use in the different units. You are also welcome to take part in an Erkodent workshop. (dates course flyer ). In our detailed thermoforming manual you will find valuable application informations. Material properties and samples to touch provides the Erkodent material card.
All Erkodent thermoforming materials are tested on their biocompatibility and are physiologically harmless in their intended use. They are CE marked based on the EU regulation 2017/745 concerning medical products, the directive 93/42/EEC concerning medical products and the EU regulation 2016/425 concerning personal protective equipment (Playsafe sports mouthguard).
Stable, hard thermoforming foil, polymethyl-methacrylate (PMMA), for the fabrication of interim prosthesis, compression plates, denture bases, dressing plates, orthodontic and extension plates and retention plates.
Medical Device Class 2a

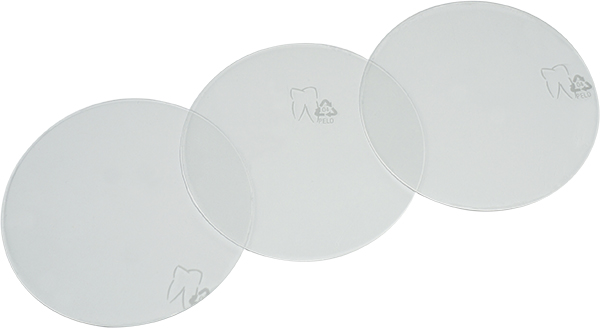

Tough-hard thermoforming plate, copolyester (PETG), with insulating foil for the fabrication of occlusal splints, moulded pieces, copings, bruxism splints, Michigan splints, stabilisation splints, temporary appliances, Silensor-sl, dressing plates, drilling, planning and X-ray templates, protection splints, correction splints, aligner and retainer.
Medical Device Class 2a
Tough-hard thermoforming plate, copolyester (PETG), with insulating foil. Enables the efficient production of correction splints/aligners or other splints produced in series or in larger quantities with the pressure forming unit Erkopress 240.
Medical Device Class 2a
Tough-hard thermoforming plate, copolyester (PETG), turquoise-transparent, with insulating foil for the fabrication of occlusal splints, moulded pieces, copings, bruxism splints, Michigan splints, stabilisation splints, temporary appliances, Silensor-sl, dressing plates, drilling, planning and X-ray templates, protection splints, correction splints, aligner and retainer.
Medical Device Class 2a
Tooth-coloured, tough-hard thermoforming foil, copolyester (PETG), with insulating foil for the fabrication of occlusal splints, bruxism splints, cosmetical splints, stabilisation splints, temporary appliances and Silensor-sl.
Medical Device Class 2a
Thermoforming sheet (Copolyester) crystal-clear, viscoelastic-hard and break-resistant with insulating foil and excellent dimensional stability.
Erkodur-al is a foil material optimized for the production of aligners. Compared to the proven Erkodur, the material is approximately 35% softer with a correspondingly lower initial force and feeling of tension during insertion. Due to the very flat memory loss curve, the effective force of Erkodur-al lasts comparatively longer.
Medical Device Class 1
Thermoforming sheet (Copolyester) crystal-clear, viscoelastic-hard and break-resistant with insulating foil and excellent dimensional stability.
Erkodur-al is a foil material optimized for the production of aligners. Compared to the proven Erkodur, the material is approximately 35% softer with a correspondingly lower initial force and feeling of tension during insertion. Due to the very flat memory loss curve, the effective force of Erkodur-al lasts comparatively longer.
Enables the efficient production of corrective splints/aligners in series or in larger quantities with the Erkopress 240 pressure forming unit.
Medical Device Class 1
Hard-elastique thermoforming foil, styrolbutadienstyrol (SBS), for the fabrication of hard mid-layers for the sports-mouthguard types Playsafe heavy-pro and light-pro.
Rubbery, soft-elastique thermoforming material, ethylvinyacetate (EVA), with insulating foil for the duplication of demonstration models, fabrication of fluoride trays, radiation protection splints, bracket transfer splints and positioners.
Medical Device Class 2a
Rubbery, soft-elastique thermoforming foil, ethylvinylacetate (EVA), different colours.
Rubbery, soft-elastique thermoforming foil, ethylvinylacetate (EVA), different colours.
Rubbery, soft-elastique thermoforming foil, ethylvinylacetate (EVA), different colours, for the fabrication of soft occlusal splint and Positioners.
Medical Device Class 2a
Rubbery, tough thermoforming foil, ethylvinylacetate (EVA), with insulating foil for the fabrication of occlusal splints, bruxism splints, radiation protection splints and protection splints.
Medical Device Class 2a
Flexible material with high elasticity and dimensional stability, ethylvinylacetate (EVA) with insulating foil for the fabrication of bleaching and fluoride trays.
Medical Device Class 2a
Flexible material with high elasticity and dimensional stability, ethylvinylacetate (EVA) with insulating foil (PE): Enables the efficient production of bleaching, fluoride trays or other splints produced in series or in larger quantities with the pressure forming unit Erkopress 240.
Medical Device Class 2a

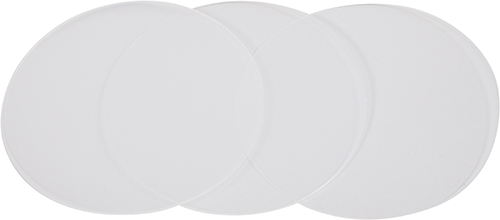

Soft, elastique thermoforming foil, polyethylene (PE), with insulating foil for the fabrication of moulded pieces, copings, spacer for fluoride gel, temporary appliances (only mould) and bracket transfer / etching masks.
Medical Device Class 1
Same material characteristics as Erkolen but harder. For manual fabrication of copings with the small thermoforming appliance Erkomini, Pastification over a Bunsen burner.
Soft, elastique thermoforming foil, polyethylene (PE) for manual production of copings with the small thermoforming appliance Erkomini. Plastification over a Bunsen burner.
Extremely resistant, breakstable thermoforming foil, polypropylene (PP), with insulating foil: PE, polyethylene, for the fabrication of occlusal splints, protection splints against bruxism, stabilization splints, correction splints (aligners), retainers.
Medical Device Class 2a
Double layer plate with high wearing comfort, hard side: copolyester (PETG), soft side: polyurethane (TPU), with insulating foil for the fabrication of occlusal splints, bleaching trays, fluoride trays, bruxism splints, Michigan splints, Miniplast splints, Silensor-sl, correction splints, aligner and retainers.
Medical Device Class 2a
Double layer plate with high wearing comfort, hard side: copolyester (PETG), soft side: polyurethane (TPU), with insulating foil. Enables the efficient production of correction splints/aligners or other splints produced in series or in larger quantities with the pressure forming unit Erkopress 240.
Medical Device Class 2a
Double-layer plate coloured-transparent, with high wearing comfort, hard side: copolyester (PETG), soft side: polyurethane (TPU), with insulating foil for the fabrication of occlusal splints, bruxism splints, stabilisation splints, Silensor-sl and retainers.
Medical Device Class 2a
Impact resistant, very rigid thermoforming plate, polylactide (PLA) rose, for the fabrication of base plates and bite plates.
Medical Device Class 1
PLA-handles bond by heat to Erkoplast PLA-R/-T/-W.
Viscous, hard material, transparent, with high torsional strength, polylactide (PLA), transparent, for the fabrication of functional trays and individual impression trays.
Medical Device Class 1
Accessories: PLA-handles high / flat, bond to Erkoplast PLA with heat.
Impact resistant, very rigid thermoforming plate, polylactide (PLA), white, for the fabrication of functional trays and individual impression trays.
Medical Device Class 1
PLA-handles bond by heat with Erkoplast PLA-R/-T/-W.
Summary of all available thermoforming plates for Erkopress 240.
The Erkopress 240 enables the efficient production of correction splints/aligners or other series or larger numbers of splints. Pressure forming unit for up to 6 models with base and for up to 9 models without base.
Thin foil, well thermoformable, Polyethylene (PE). Does not bond to Erkodent thermoforming materials. Recommendation: Universal UZF is especially suitable for Erkoflex.
Thermoforming foil for the Usig system. The ingenious simple system leads in telescopic works to a sliding area with precise real friction, firm fit and still allows an insertion and taking without seizingand a hydraulical feeling.
• Real friction
• Extremely comfortable insertion and taking for the patient and the practicioner
• By a simple re-working the friction is at any time optimisable
• Low material costs
• Extremely time saving
• Most simple fabrication with the Erkodent thermoforming technique.
Medical Device Class 2a
Glueable, bonds to acrylate.
Shrinkage compensation foil, PVC, for Erkolen-A and -AW, for manual production of copings with the small thermoforming unit Erkomini.

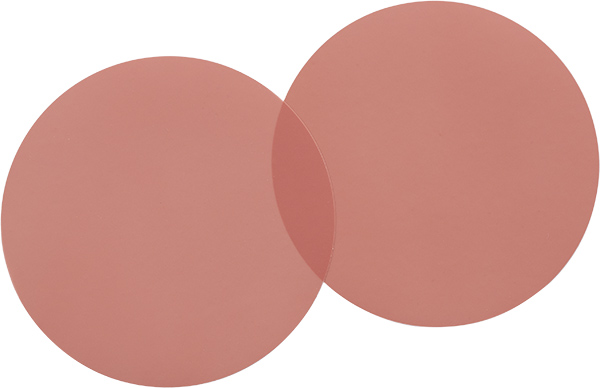

Spacer foil (shrinkage compensation foil) for the casting technology, polystyrol (PS). Clear UZF for Erkolen-A, red for Erkolen.
