Dental Orthopedics

Occluform-3

A unique occludator for the Erkoform units serie 3.

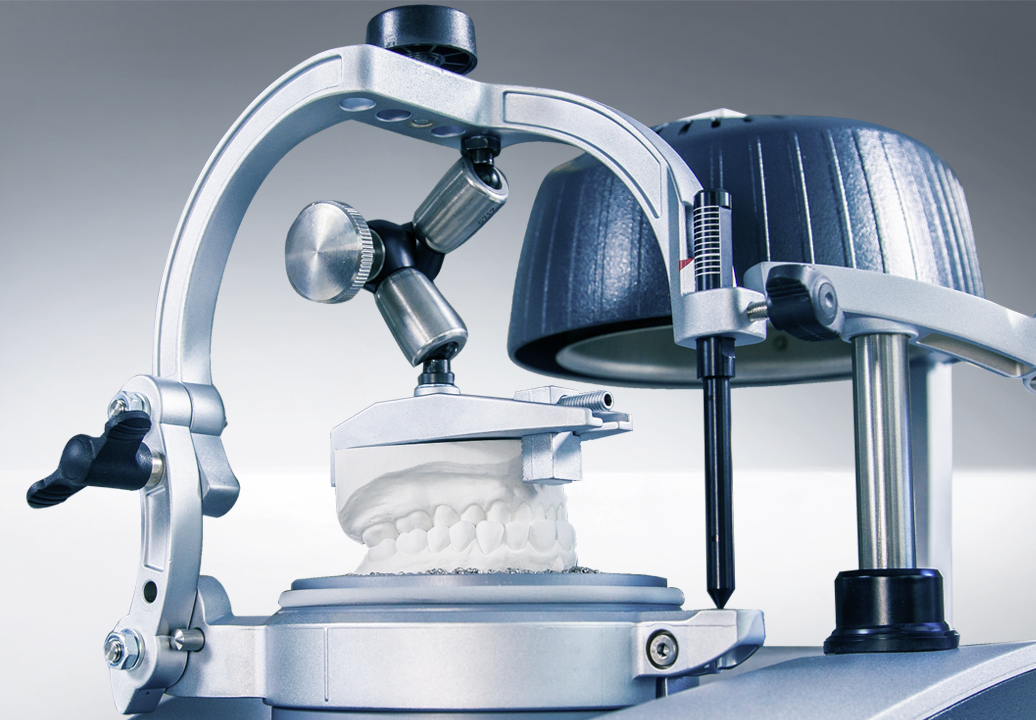

Occluform-3

The opposing bite is imprinted directly in the Erkoform unit during the thermoforming process!

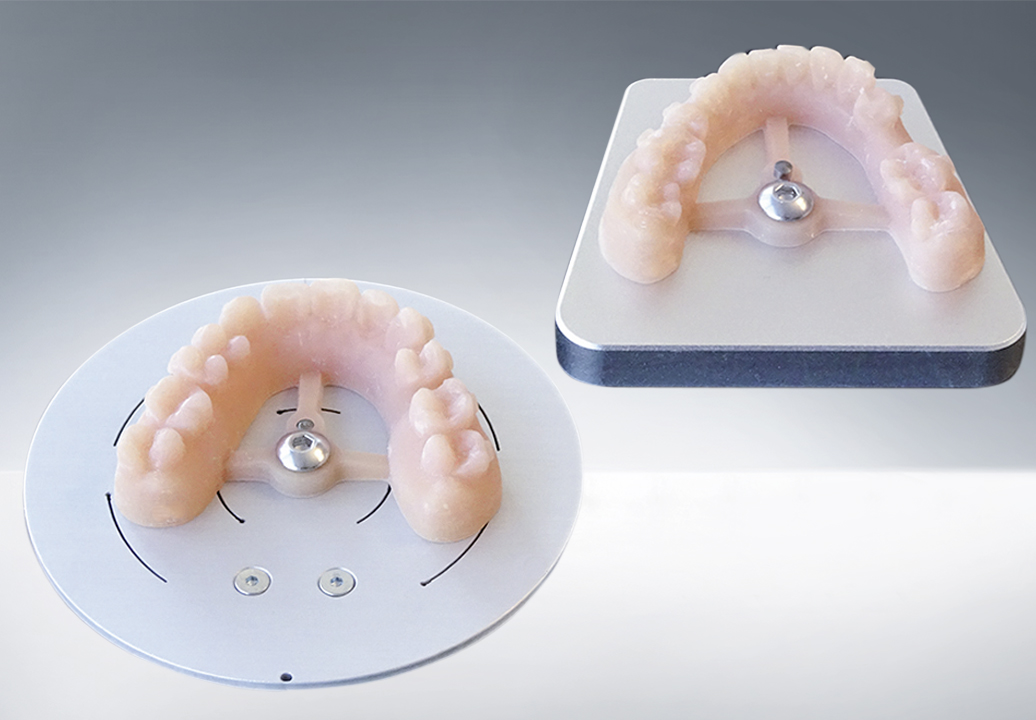

Occ3_4p

Special device for fixation of 3d print models in the Occluform-3 device.

Occ3_aM

Device for mean value alignment of a model in the Occluform-3 model pot to the incisal point and to the occlusal plane.

Occluform-3
Occluform-3

Occluform-3, a unique occludator for the Erkoform units of the 3 series. The construction of the Occluform-3 unit is based on a Bonwill triangle with side length of 11.5 cm and a Balkwill angle of 20°.

Usage
Due to measurements that are in accordance with the ones of a state of the art average movement articulator, the Occluform-3 allows for a mean/mid-value rising of the bite.
With the help of the Occluform-3 the models can be articulated if a construction bite is available that was taken either orally or in a fully adjustable articulator.
A marking line on the supporting pin corresponds to a bite rising of approx. 1 mm at the incisal point.
• The new and stronger arresting joint needs less effort for a secure locking.
• Plaster-free model fixation.
• A lot of space, even for high models.
• Single column construction for best model accessibility.
Delivery Forms
Order No.
Description
Contents
Unit
Occluform-3
1
piece
Delivery Contents
188580 Occluform-3, Model pot for fixation of the model in the unit form pot, granules shovel, hexagonal socket wrench size 3
Application
With the Occluform-3 the opposing bite can be imprinted optimally in the malleable thermoforming material during the thermoforming process.
